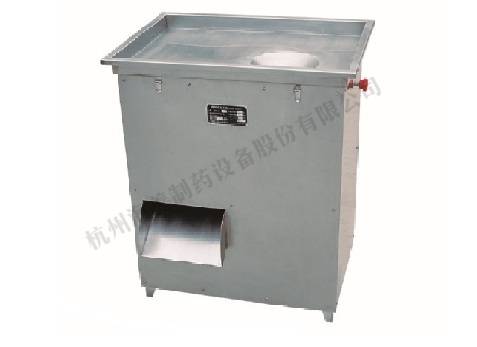

QX(自适应)旋料式切片机

 提示:点击图片可以放大

QX型旋料式切片机(自适应)主要用途:

    用于果实、种子和部分根茎类药材及其它农副产品的切片加工。

               250型旋转式切片机

      QX型旋料式切片机(自适应)主要特点:

        连续作业,单机产量高,自动适应进料量,切制力与物料质量成正比(自适用);易清洗、易操作、不污染物料,符合GMP要求。其中QXWT-250和QXWT-350为变频调速。


          QX type rotary slicer (adaptive) products:
          This product is used for slice processing of fruits, seeds and some rhizome medicines and other agricultural and sideline products.

          The main features of QX type rotary slicer (adaptive) are:
          Continuous operation, single machine production high, automatically adapt to the feed volume, cutting force and material quality is proportional to (self applicable); Yi Qingxi, easy operation, non pollution materials, meet the requirements of GMP. QXWT-250 and QXWT-350 are variable frequency speed control.

          QX型旋料式切片机技术参考  Technical parameter


          型号切刀频率(times/min)进料口尺寸(mm)切片厚度(mm)参考产量(Kg/h)功率/电压(KW/V)重量(KG)外型尺寸(M)主要材料
          QXL-1001920≤1000.5-5150-6001.5/3802200.7×0.6×0.9不锈钢
          QXL-1502880≤1000.5-6200-9002.2/3803000.8×0.6×1.0
          QXL-2502000-4000≤2500.5-6250-14003.0/3803501.2×1.0×1.0不锈钢
          QXL-3502000-4000≤3500.5-6300-20004.0/3804001.6×1.3×1.1不锈钢



                     150型旋转式切片机
